Eurospec - Fitting Jig for Ceam Hinges 1129 & 1130 - DIMECON2ART1130

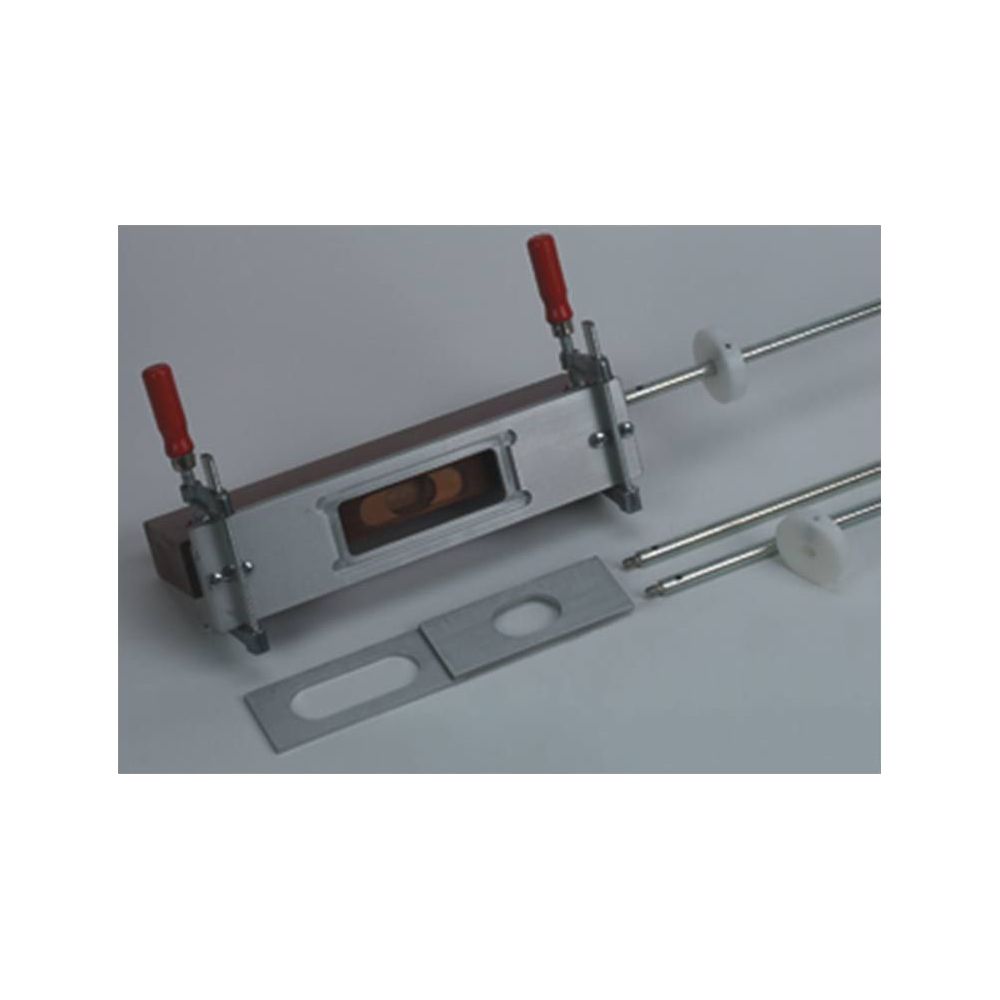

Fitting Jig for the 1129 & 1130 Ceam 3D concealed hinge.
The drilling template, made of 5 mm thick aluminium plates, is composed by a central body and a double insert (sold separately from the body); it allows the implementation of the slots for all the invisible hinges. The strength of the materials guarantees precise slots executions with a manual pantograph (strong>16 mm/strong> diam. cutter and strong>27 mm/strong> external ring provided for all manual pantographs). For each hinge model, two types of insertions, easily replaceable, are used: one (A) to execute: the stroke slot and the other (B) for the internal depth slot.
Please order the template 1129 or 1130 with the fitting jig below.
Sold in Singles.
