Description

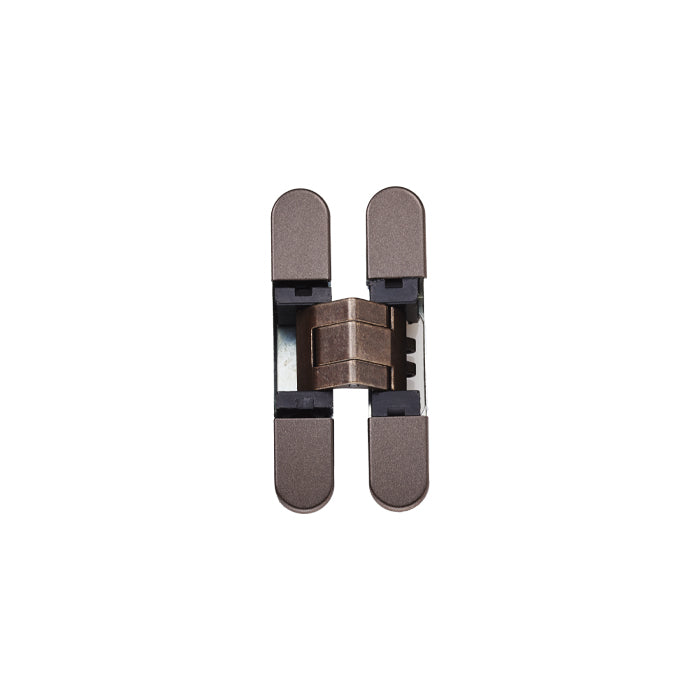

Eurospec - Ceam 3d Concealed Hinge 929 - Matt Bronze - CI000929BRO00
Finish - Matt Bronze

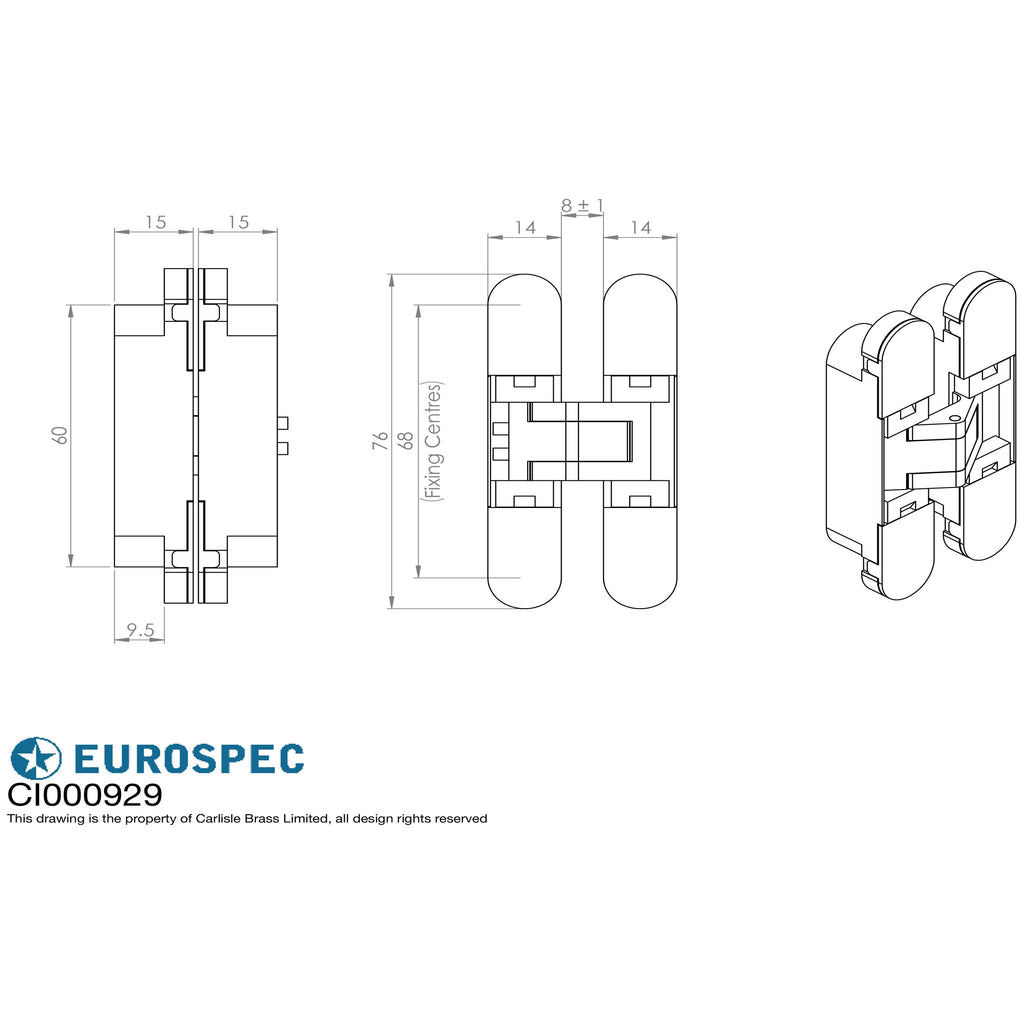

Dimensions
Fixing Centres: 68mm
Length: 76mm
Height: 14mm
3D Adjustable Cabinet Hinge
12kg - Max Loading 2 Hinges
16kg - Max Loading 3 Hinges
21kg - Max Loading 4 Hinges
Simple adjustment on 3 axis by 2.5mm allen key ( not supplied ) see UPSETREG1, 180 Deg Opening. Fixings fully concealed and suitable for wardrobe & cabinet doors up to 21kg. Suitable for cabinet carcasses & doors from 18mm thick and works with Inset or lay-on cabinet doors.
Please Note: All Ceam Hinges are supplied in Singles.
Sold in Singles.
