Description

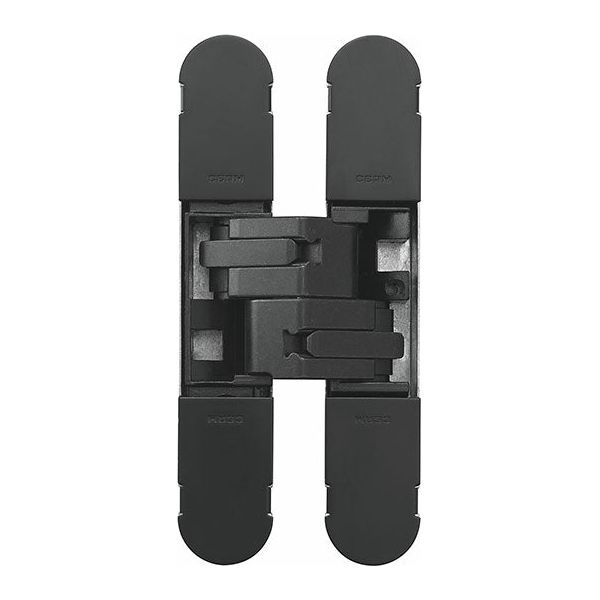

Eurospec - Ceam 3D Concealed Hinge 1230 - Matt Black - CI001230VNO00
Finish - Matt Black
Dimensions
Length: 130mm
Width: 30mm
130 x 30mm, Matt Black. A concealed heavy duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Available in six finishes. Comes with a 10-year mechanical guarantee. Max Loading 120kg. Suitable for domestic use.
A concealed heavy duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Comes with a 10 year mechanical guarantee. Available in 6 different finishes, Suitable for doors from 35mm to 45mm thickness. Total length 130mm, Reversable, Depth only 21mm. Easy Installation, slot symmetry and Fire resistant 30 mins
Load capacity 2 hinges: 50 kg
Load capacity 3 hinges: 70 kg
Load capacity 3 hinges asymmetrical: 74 kg
Load capacity 4 hinges: 80 kg
Please Note: All Ceam Hinges are supplied in Singles without fixings. If fixings are required, please order ASS1025
Sold in Singles.
