Description

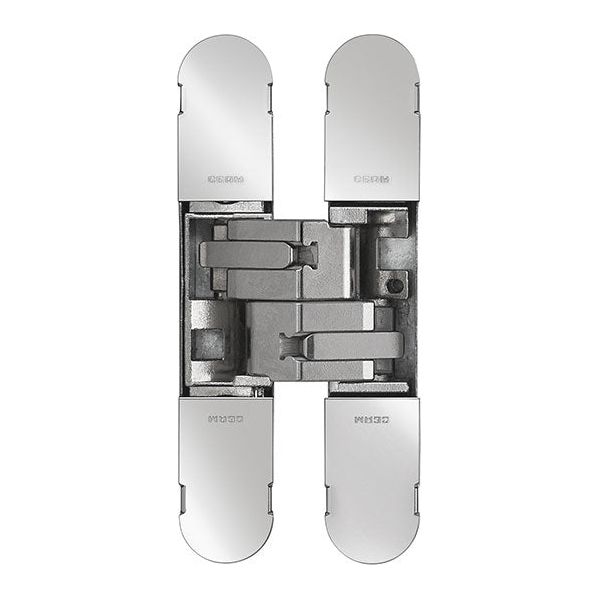

Eurospec - Ceam 3D Concealed Hinge 1131 - Nickel Plate - CI001131NIK00
Finish - Nickel Plate

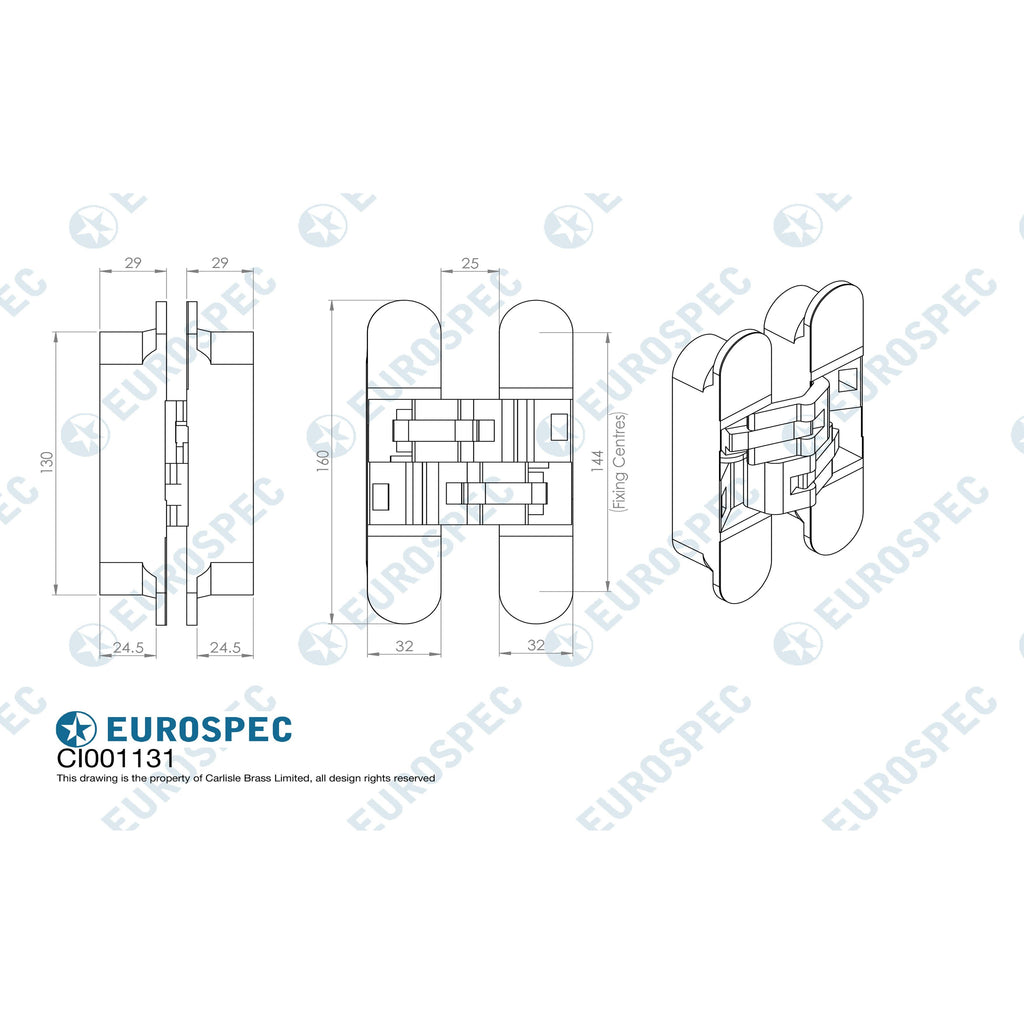

Dimensions
Length: 160mm
Width: 32mm
Height: 32mm
160 x 32mm, Nickel Plated. A concealed heavy duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Available in four finishes. Comes with a 10 year mechanical guarantee. Max Loading 120kg. Suitable for domestic use.
A concealed heavy duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Comes with a 10 year mechanical guarantee.
Available in various different finishes
Suitable for doors of 38mm thickness
Total length 160mm
Depth 29mm
Load capacity up to 120 kg
Easy Installation and slot symmetry
Fire resistant 60 mins
Please Note: All Ceam Hinges are supplied in Singles without fixings. If fixings are required, please order ASS1021
Sold in Singles.
