Description

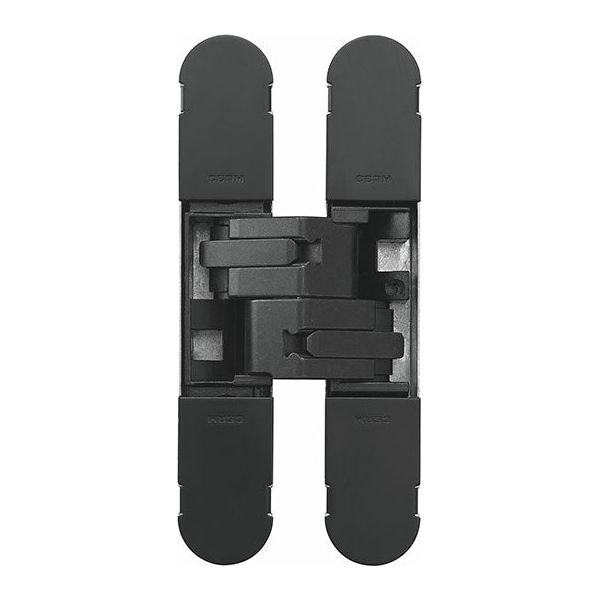

Eurospec - Ceam 3D Concealed Hinge 1131 - Matt Black Varnish - CI001131VNO00
Finish - Matt Black Varnish

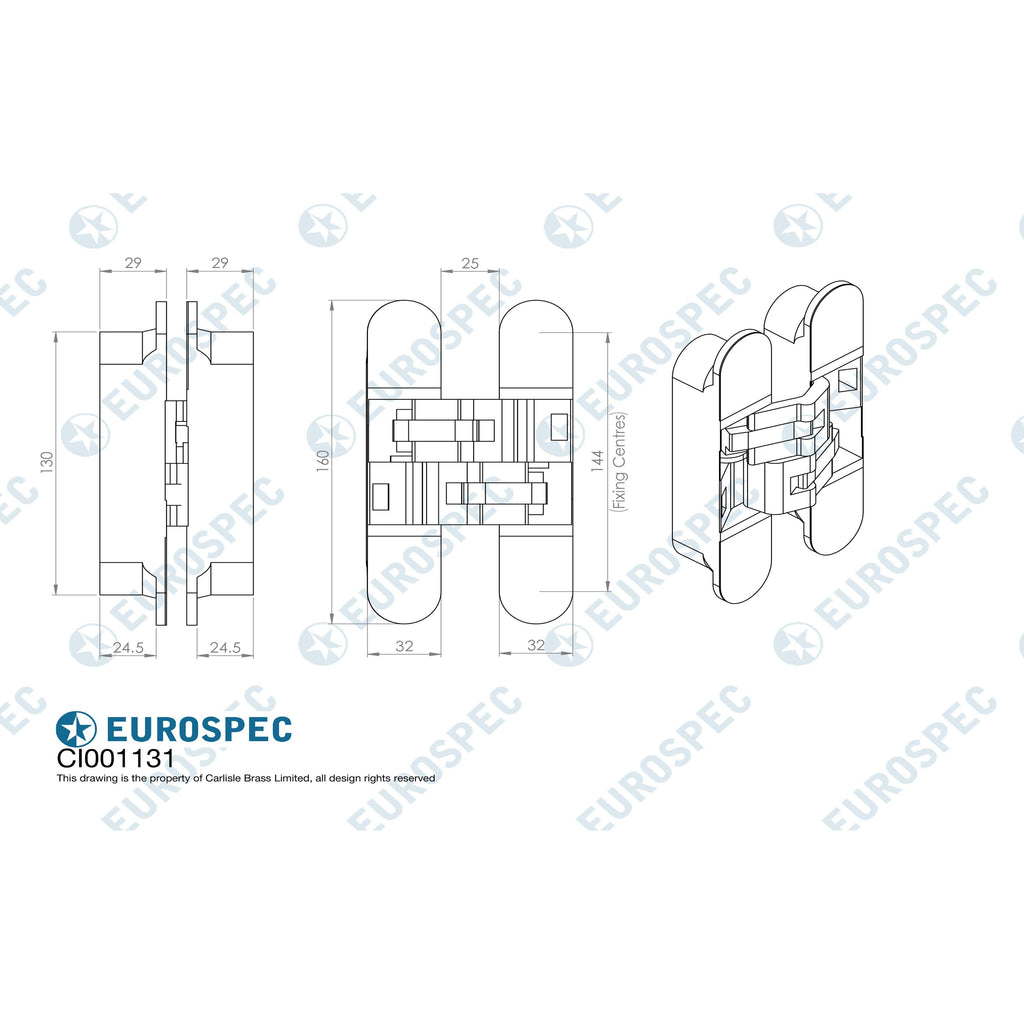

Dimensions
Length: 130mm
Width: 30mm
160 x 32mm, Matt Black Varnish. A concealed heavy duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Available in four finishes. Comes with a 10 year mechanical guarantee. Max Loading 120kg. Suitable for domestic use.
A concealed heavy duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Comes with a 10 year mechanical guarantee.
Available in various different finishes
Suitable for doors of 38mm thickness
Total length 160mm
Depth 29mm
Load capacity up to 120 kg
Easy Installation and slot symmetry
Fire resistant 60 mins
Please Note: All Ceam Hinges are supplied in Singles without fixings. If fixings are required, please order ASS1026
Sold in Singles.
