Description

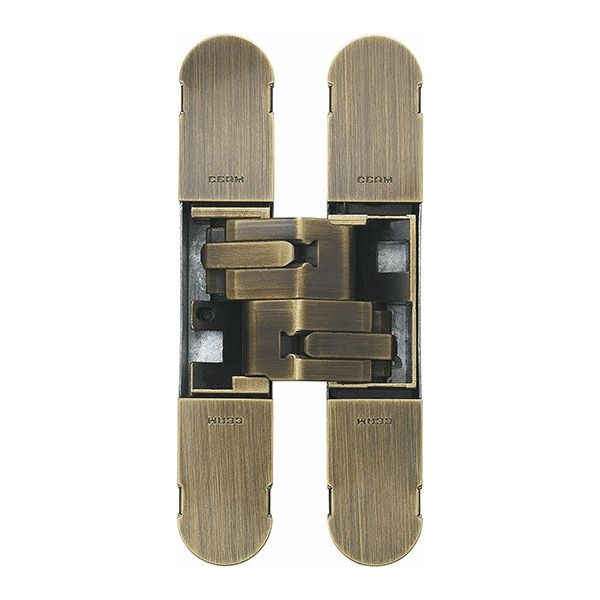

Eurospec - Ceam 3D Concealed Hinge 1130 - Antique Satin Bronze - CI001130BRS00
Finish - Antique Satin Bronze

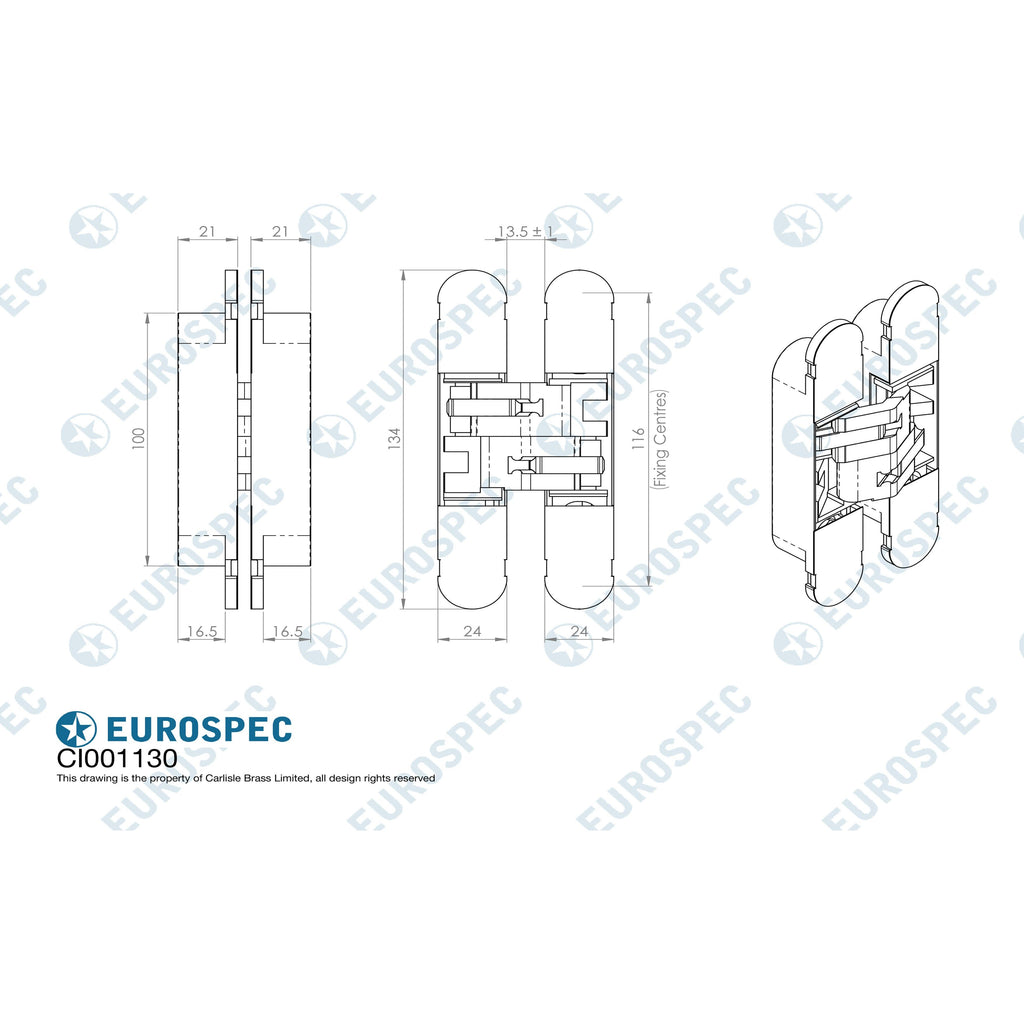

Dimensions
Length: 134mm
Width: 24mm
Height: 24mm
134 x 24mm, Antique Satin Bronze Plated. A concealed medium duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Available in four finishes. Comes with a 10 year mechanical guarantee. Max loading 60kg. Suitable for domestic use.
A concealed medium duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Comes with a 10 year mechanical guarantee.
Available in 4 different finishes
Suitable for doors of 30mm thickness
Total length 134mm
Depth 21mm
Load capacity up to 60 kg
Easy Installation and slot symmetry
Fire resistant 30 mins
Please Note: All Ceam Hinges are supplied in Singles without fixings. If fixings are required, please order ASS1020
Sold in Singles.
