Description
Eurospec - Ceam 3D Concealed Hinge 1129 - Champagne - CI001129VCH00
Finish - Champagne

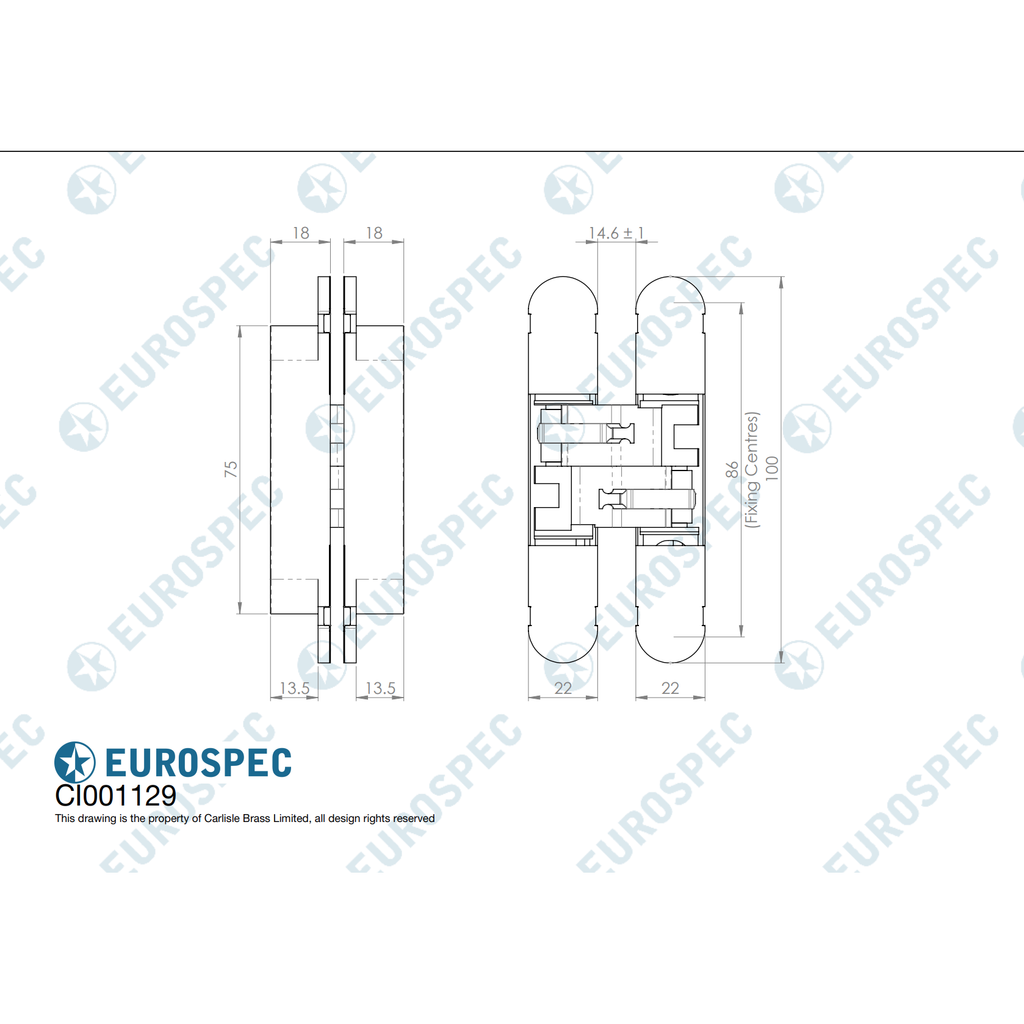

Dimensions
Length: 100mm
Width: 22mm
Height: 22mm

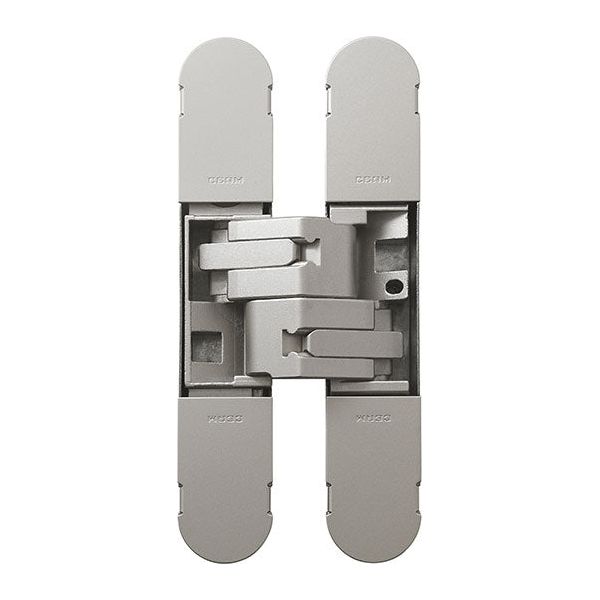

100 x 22mm, SS Plated A concealed medium duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Comes with a 10 year mechanical guarantee. Max Loading 40kg.
A concealed medium duty hinge for unrebated, flush faced quality timber doors. Has removable cover plates to conceal the adjustment screws. Comes with a 10 year mechanical guarantee.
Available in 4 different finishes
Suitable for doors of 28mm min. thickness
Total length 100mm
Depth 18mm
Easy installation and slot symmetry
Maximum width - 1000mm
Hinge fixing position
Please Note: All Ceam Hinges are supplied in Singles without fixings. If fixings are required, please order ASS1022
Sold in Singles.
